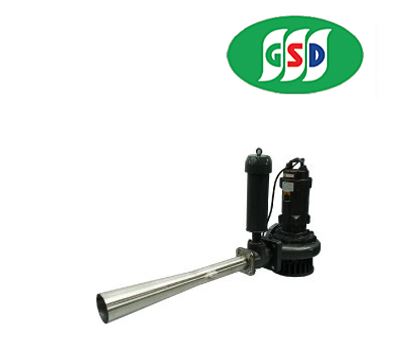

Submersible Jet Aerator




Features : Wet-installed submersible motor IP68 Class F. Special designed High performance impeller without blocking fouls, equipped with diffuser pipe for air bubble exhaustion Low noise, Double mechanical seal, built in leakage and over-heat protection control. Application : Use for industrial sewage treatment groundwater aeration, activator sludge waste water treatment process. DN : 50 – 100 mm Air-Flow : 11 ~ 103 m3/hr O2 Transfer : 0.35 kg ~ 5.9 kg O2/hr Power : .75 ~ 5.5 kw Depth : 1 ~ 6 m Material : Cast Iron Temp : < 40 ºC
