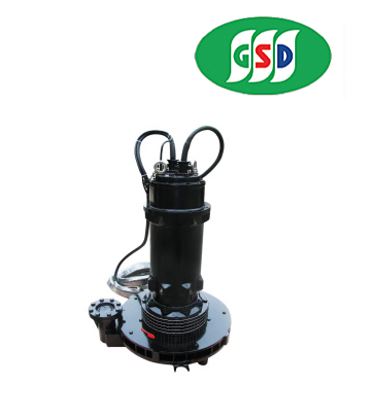

Submersible Aerator




Features : Wet-installed submersible motor IP68 Class F. Special designed impeller and aeration housing distributed with 12 or 14 spay channels outlet to make air become tiny bubbles. Double mechanical seal, built in leakage and over-heat protection control. Application : Use for industrial sewage treatment groundwater aeration, activator sludge waste water treatment process. DN : 40 – 150 mm Air-Flow : 30 ~ 825 m3/hr O2 Transfer : 1 kg ~ 82 kg O2/hr Power : 1.5 ~ 55 kw Depth : 1 ~ 6 m Material : Cast Iron Temp : < 40 ºC
